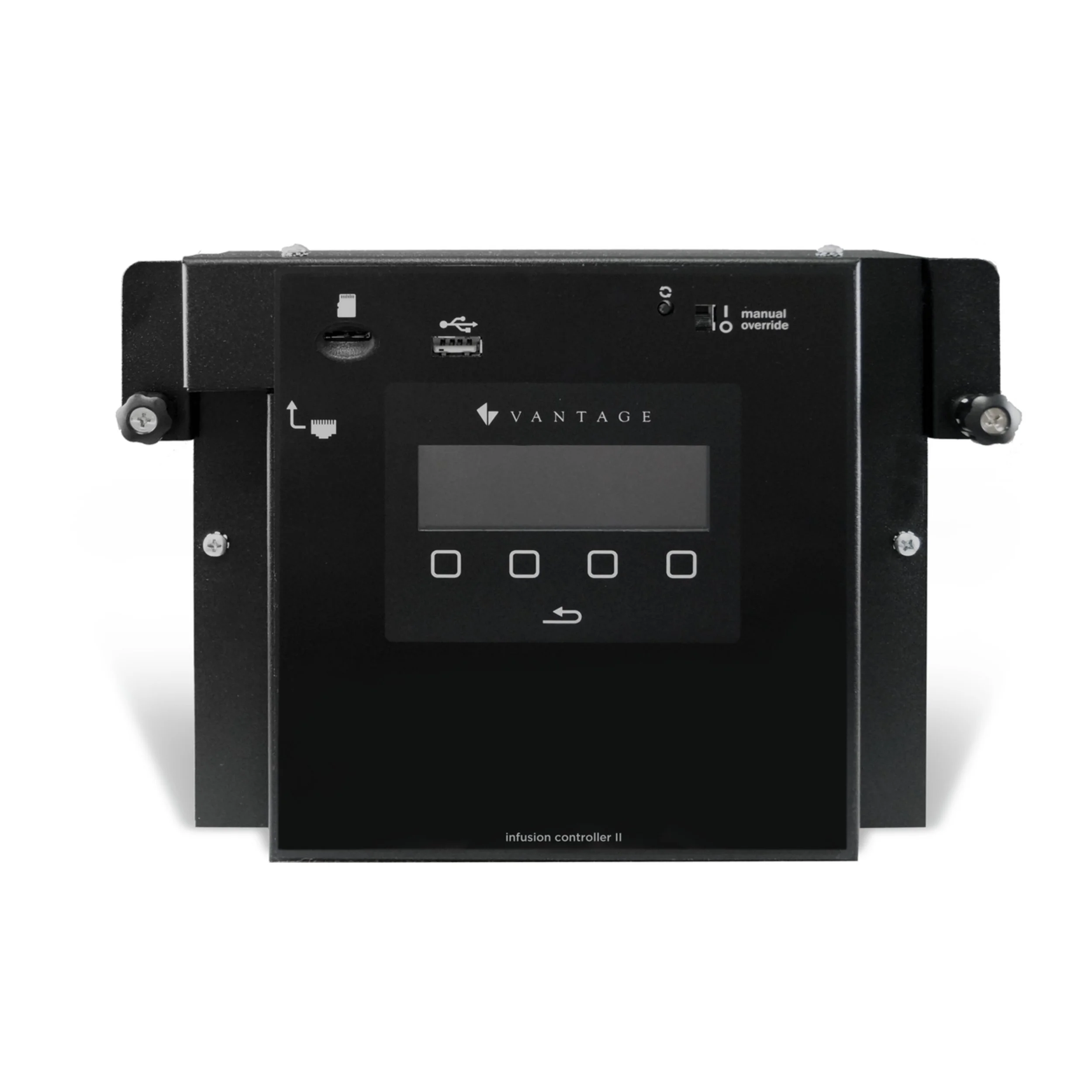

The InFusion Controller II is the “main brain” of the Vantage Lighting Control System and is capable of supporting all Vantage user interfaces and supported connected devices. The InFusion Controller II is capable of providing delay-free control of large, complex systems. These requirements include instantaneous control, real time feedback, a highly scalable system architecture, and programming for individual system personalization. The InFusion Controller also provides seamless integration into a home or buildings subsystems, including shades and comfort control, which enhance the entire control experience.

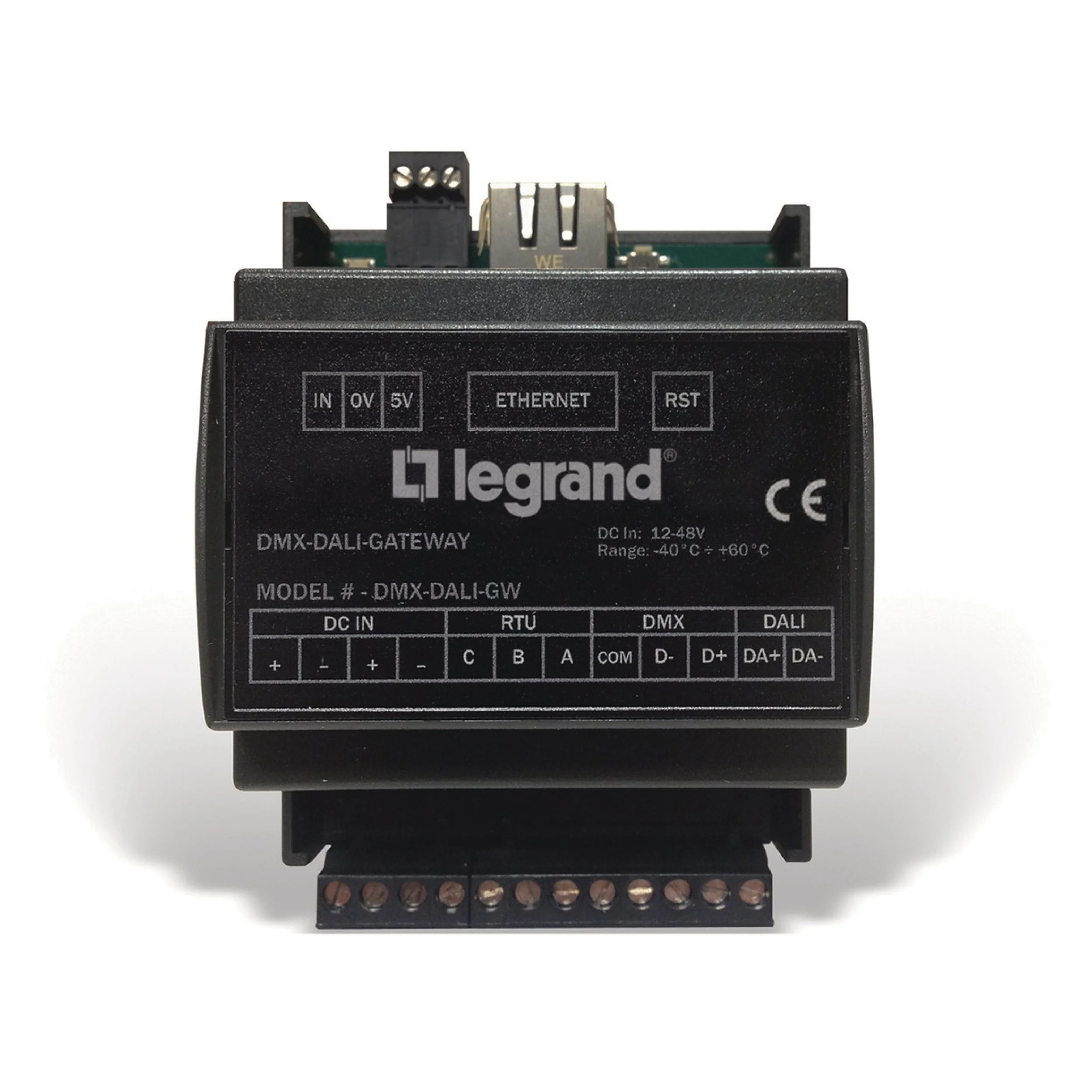

The DMX-DALI-GATEWAY (DMX-DALI-GW) provides a full DMX universe of 512 channels as well as 64 channels of DALI control in one simple solution.

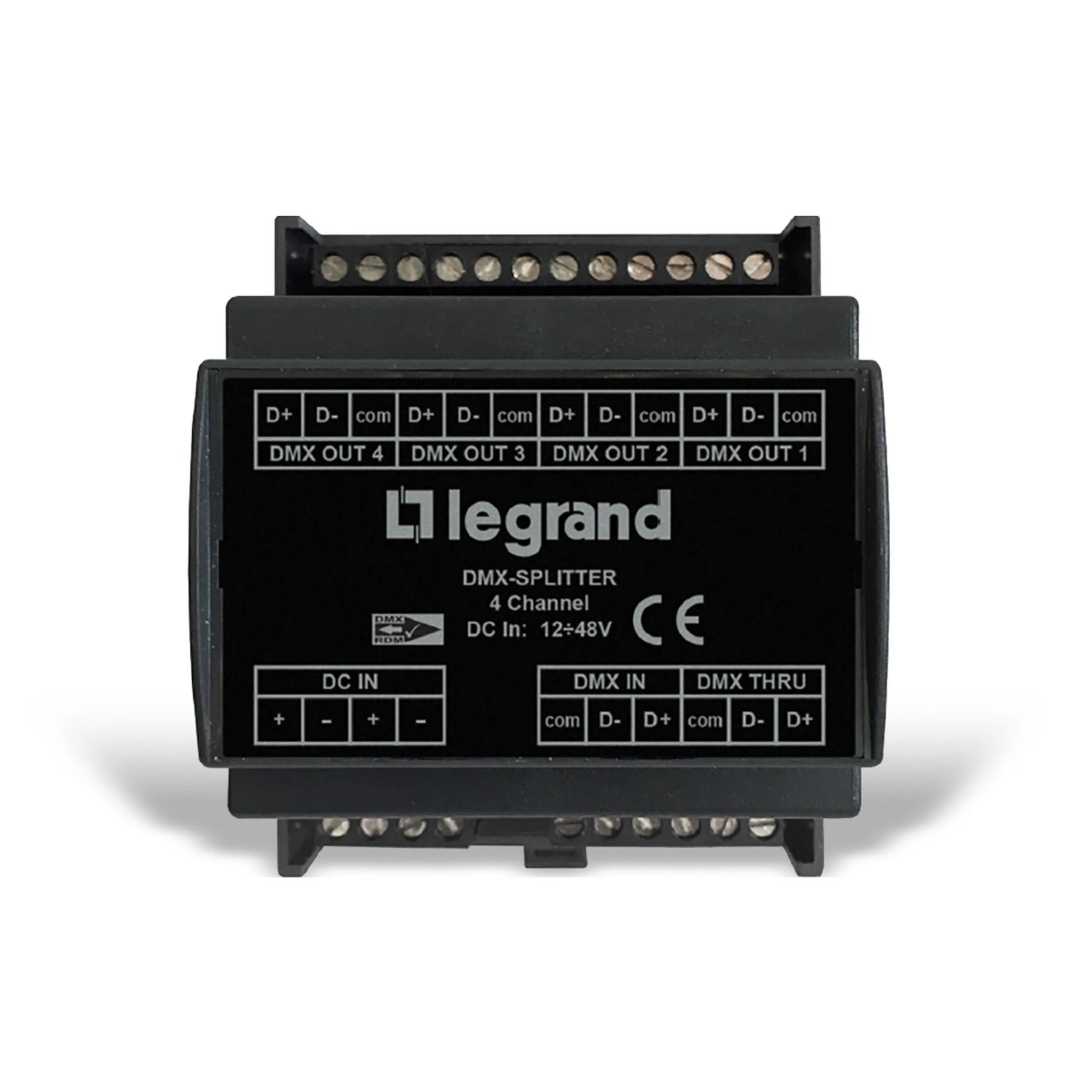

The Wattstopper DMX-SPLITTER is a repeater that divides and regenerates the DMX/RDM input signal into four output channels. It is used with DMX controlled lighting systems when the maximum of 32 devices per bus run is exceeded. In this way, more devices can be added to a DMX network without adding a new DMX-DALI controller. In addition to DMX, the DMX-SPLITTER also distributes RDM messages for devices that use RDM.

The DIN Rail mounted Low-Voltage Output Station (LVOS) is used for the control and automation of LED and Fluorescent lighting loads requiring either 0-10V or pulse width modulation (PWM) for dimming control. The DIN LVOS can control up to eight 0-10V loads. Unlike other LVOS products the DIN LVOS does not have relays on-board for switching. It relies on an external relay station (RS8-L-DIN) or module (MDR8CW301) to do high-voltage switching.

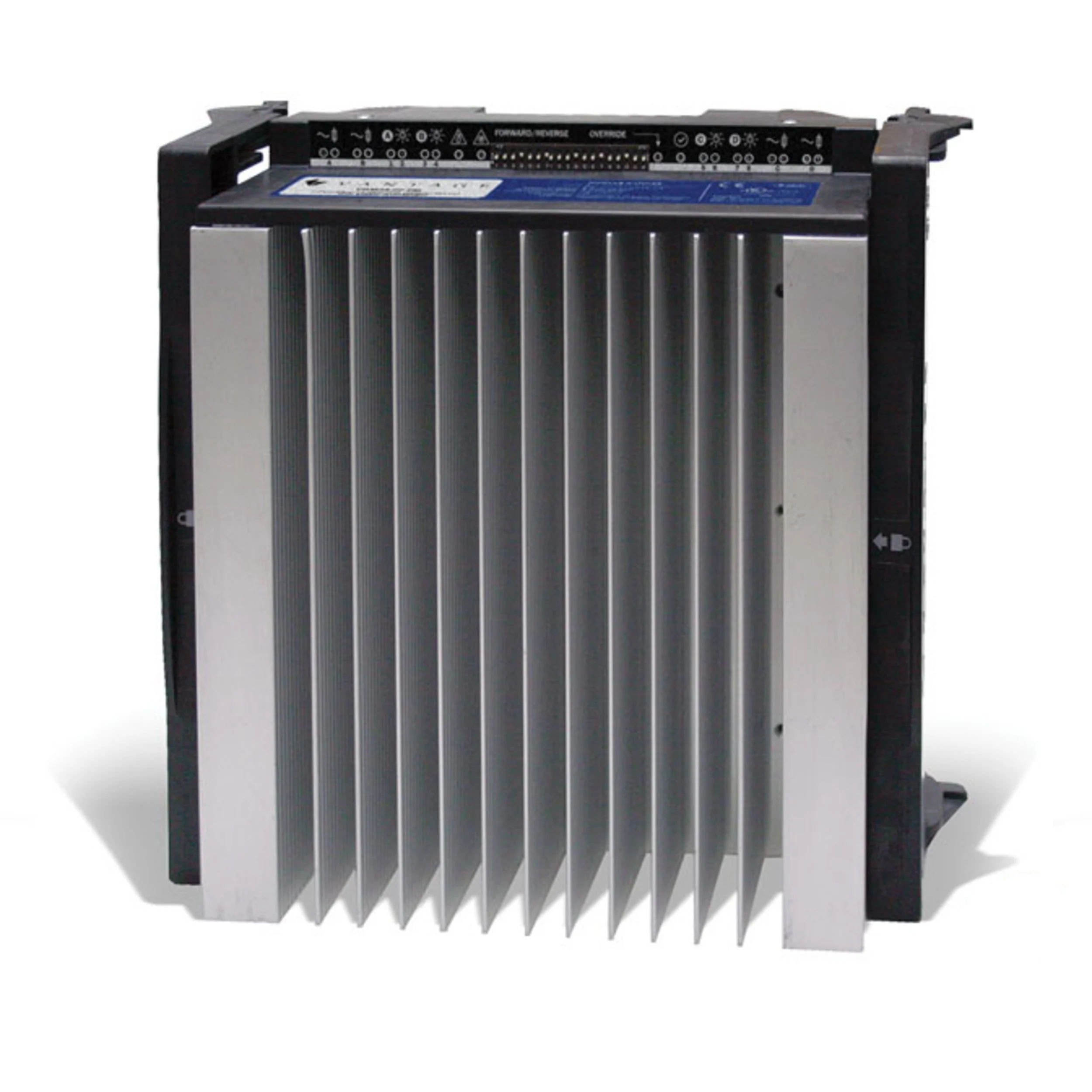

The InFusion Universal Dimming Module (UDM08-EM) provides load agnostic phase control as a component of Vantage’s centralized lighting control system. It can be mounted in a main or secondary power enclosure and supports control of up to 8 dimmable, forward and reverse phase type loads with up to four line feeds supporting up to 32 amps of total load per module. The module is designed to automatically detect load type, forward or reverse phase. In addition, with current sensing built in, the UDM supports enhanced conditional programming in Design Center for increased support of energy management scenarios.

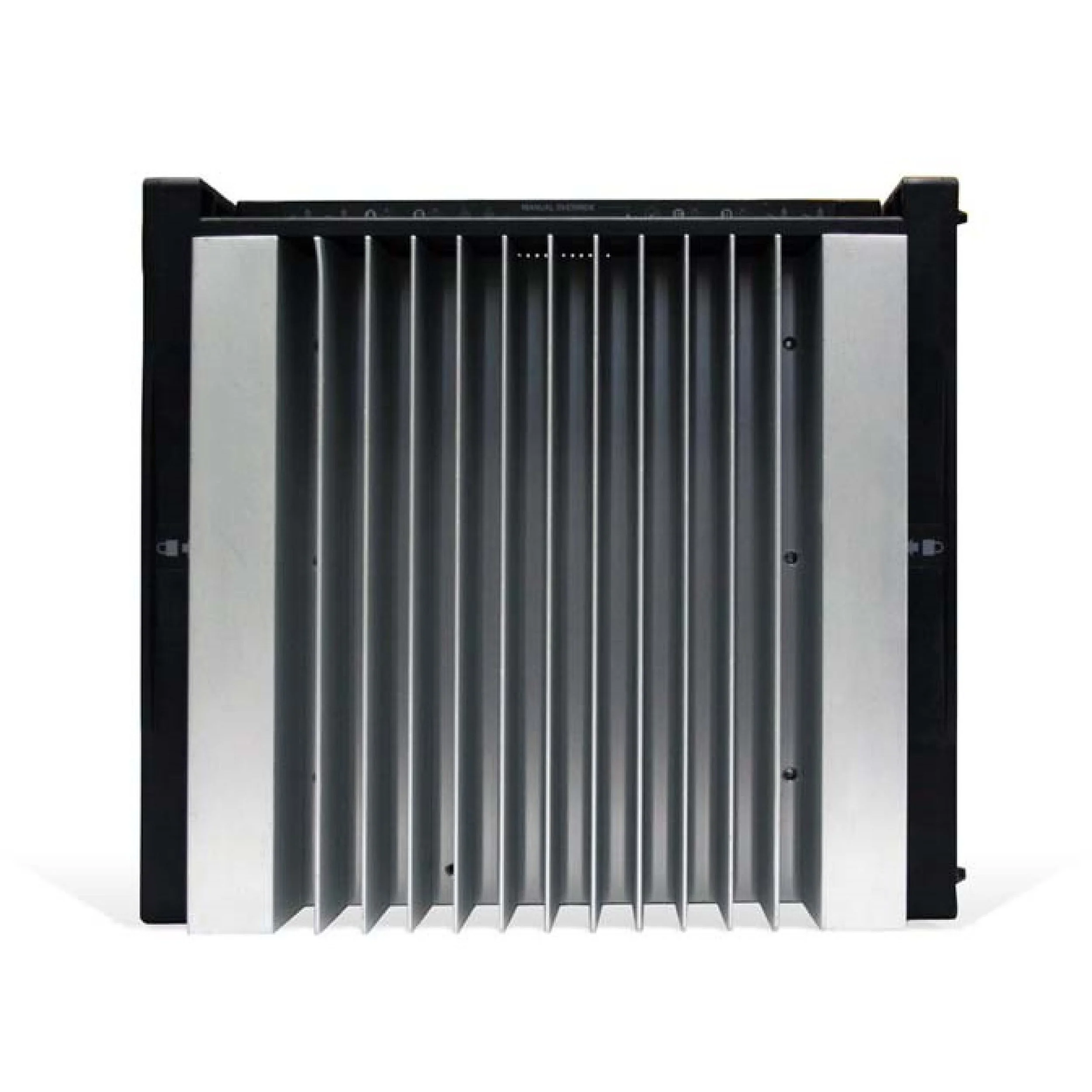

Vantage's InFusion Standard Dimming Modules (SDM12-EM) is a key component of Vantage's lighting control solution. The SDM12-EM is mounted in a Main or Secondary Power Enclosure (IMPE or ISPE) and supports control of up to 12 standard (forward phase) loads with up to four line feeds and up to 64 total amps of load. Enclosures provide new module locking mechanisms for improved in-field plug and play installation and service; allowing modules to be quickly replaced without affecting load connections to the system. Field Serviceability is enhanced with field service alerts sent via email to installers and in-field firmware upgradable lighting control modules, an industry first. Layout of the Dimming Module is simply designed through Vantage Design Center Software.

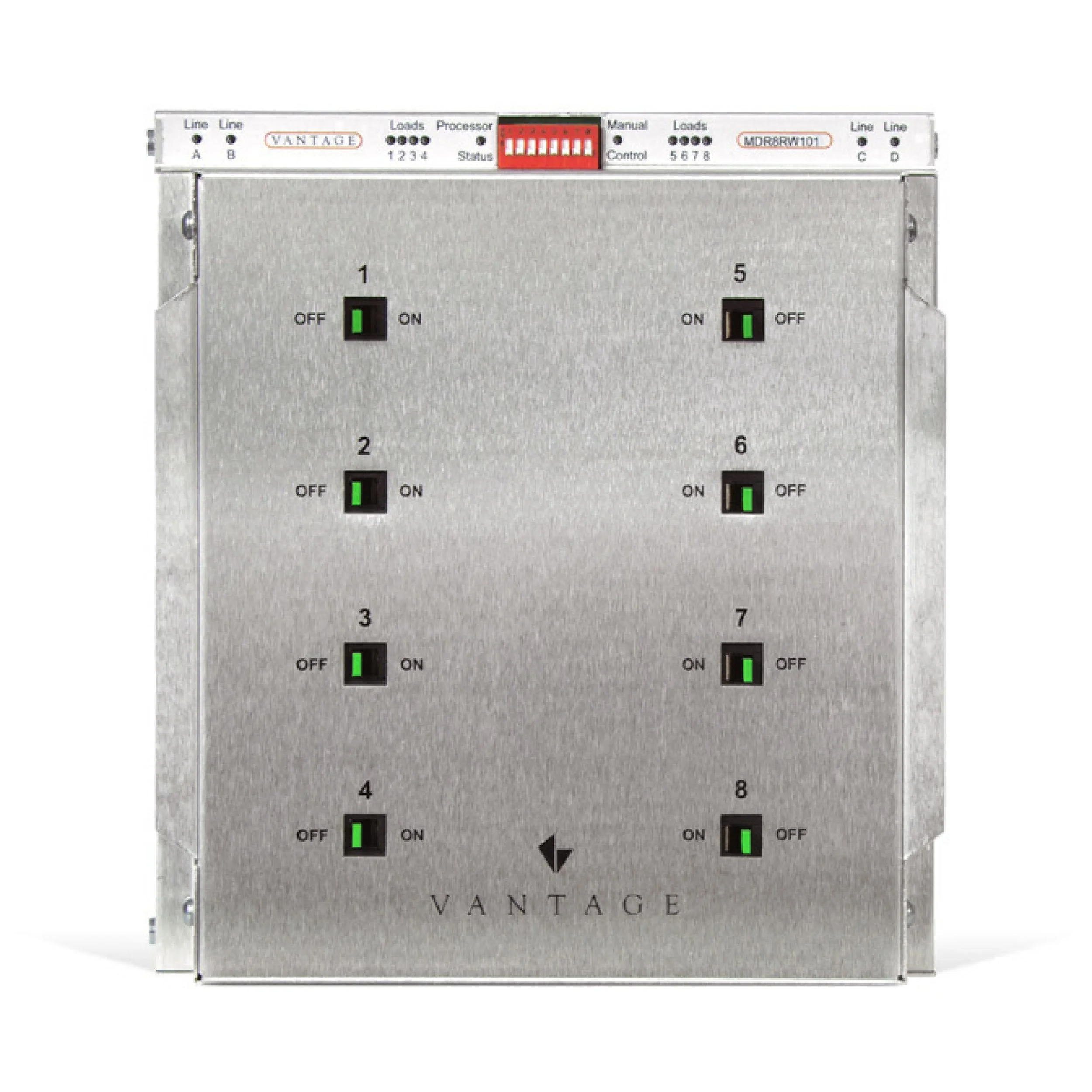

The InFusion Latching Relay is an integral component to Vantage’s centralized lighting control system. It can be mounted in a main or secondary power enclosure and supports control of up to 8 loads with up to eight line feeds and up to 80 total amps of load.
